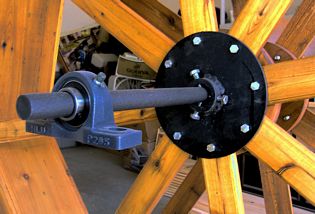

Two of the biggest problems with making your own water wheel are how to mount a metal axle into a wood hole without the wood wearing and cracking up over the years and trying to get the axle exactly square to the wheel itself.   An axle 1/4" out of square can make a 5 foot wheel wobble almost 1 1/2" inches.   This metal hub plate allows you to adjust your axle so that you can minimize wheel wobble and it also allows you to balance your wheel when the balance changes due to waterlogging.   The set includes 2 hub plates, 2 bearings (pillowblock or flange mount), and a 35" steel painted axle.   The axles are slightly undersized to slide easily into the bearings.    Several sizes are available.     Custom sizes are available.  The 9" and 10" plate sets come with a 1" axle/bearings are good for most wheels up to 5 feet shipped to your home.      $340  The 11"  plate set with a 1 3/4" axle/bearings and  will handle most wheels from 6 to 8 feet shipped to your home.      $430   The 13"  plate set with a 1 3/4" axle/bearings and  will handle most wheels from 6 to 8 feet shipped to your home.      $450

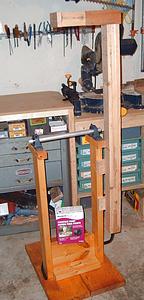

This beautiful stand comes complete and ready to go with minimal assembly (14 screws and 4 bolts) and is custom fitted to your water wheel if ordered at the same time as you order your wheel.   The stand includes a wood pipe to get the water up to your wheel and a trough to deliver the water to the wheel.   Sturdy and durable this stand ships broken down to save shipping cost and is easily assembled in about 30 minutes.   A 5/8"  water line comes out of the bottom of the water pipe for your pump.   I also include 2 pillow bearings, a 1"x 18" shaft, and 2 wheel locks for a full package.   Add a water wheel and your pump and it's ready to drop into your pond or stream.   Ships with 36" uprights to hold your 42" wheel about 3" above water 12" deep but uprights can be shipped with a different length.   Just send me a e-mail with your pond depth when you order your stand and we wll adjust the length of your uprights (sometimes with an additional charge).      $329 Spencer@IronHorse.citymax.com

340 GPH adjustable flow pump supplies more than enough water to turn most water wheels up to 5 feet diameter and allows you to decide if you want your wheel to turn slowly for a relaxing rhythm or to run very fast. shipped to your home.     $90  510 GPH adjustable flow pump supplies more than enough water to turn most water wheels up to 8 feet diameter and allows you to decide if you want your wheel to turn slowly for a relaxing rhythm or to run very fast. shipped to your home.     $105  Spencer@IronHorse.citymax.com

Axle and bearing sets with "hub locks" to connect your wooden hubed water wheel to the solid steel axle.     Each set has a solid steel axle, 2 pillowblock bearings, and 2 hub locks. 1" diameter solid steel axle (30" long) set good for wheels weighing up to 120 lbs dry or 180 lbs wet (3'-5' diameter) shipped to your home.                $175 1 3/4" diameter solid steel axle (36" long) set good for wheels weighing up to 200 lbs dry or 300 lbs wet (6'-8' diameter) shipped to your home.       $260 Custom sets are available.      Spencer (706)207-1080
